What is Power Logging?

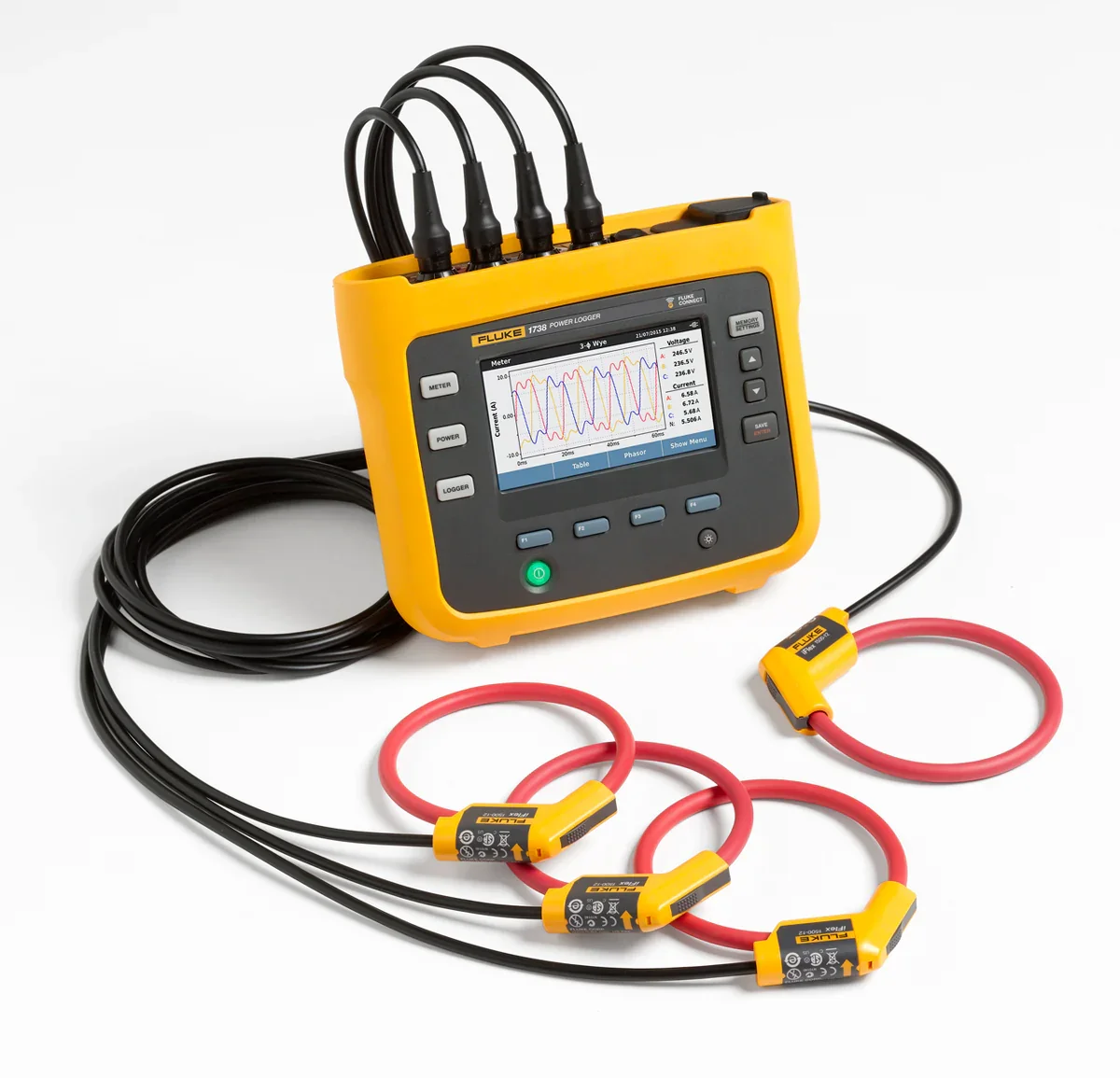

Power logging is the process of measuring and recording how electricity is used within a home, business, or industrial site over a specific period of time. Using a portable power logger or power analyser, an electrician can track voltage, current, power factor, demand peaks, and load balance across circuits. This data reveals how efficiently power is being used, where energy is being wasted, and whether the electrical system is performing safely and reliably.
In Perth, power logging is becoming an essential service for business owners, facilities managers, and homeowners who want to understand their energy use in detail. With rising energy costs and tighter compliance requirements, accurate power monitoring and reporting allows you to make informed decisions about upgrades, maintenance, and energy efficiency improvements.

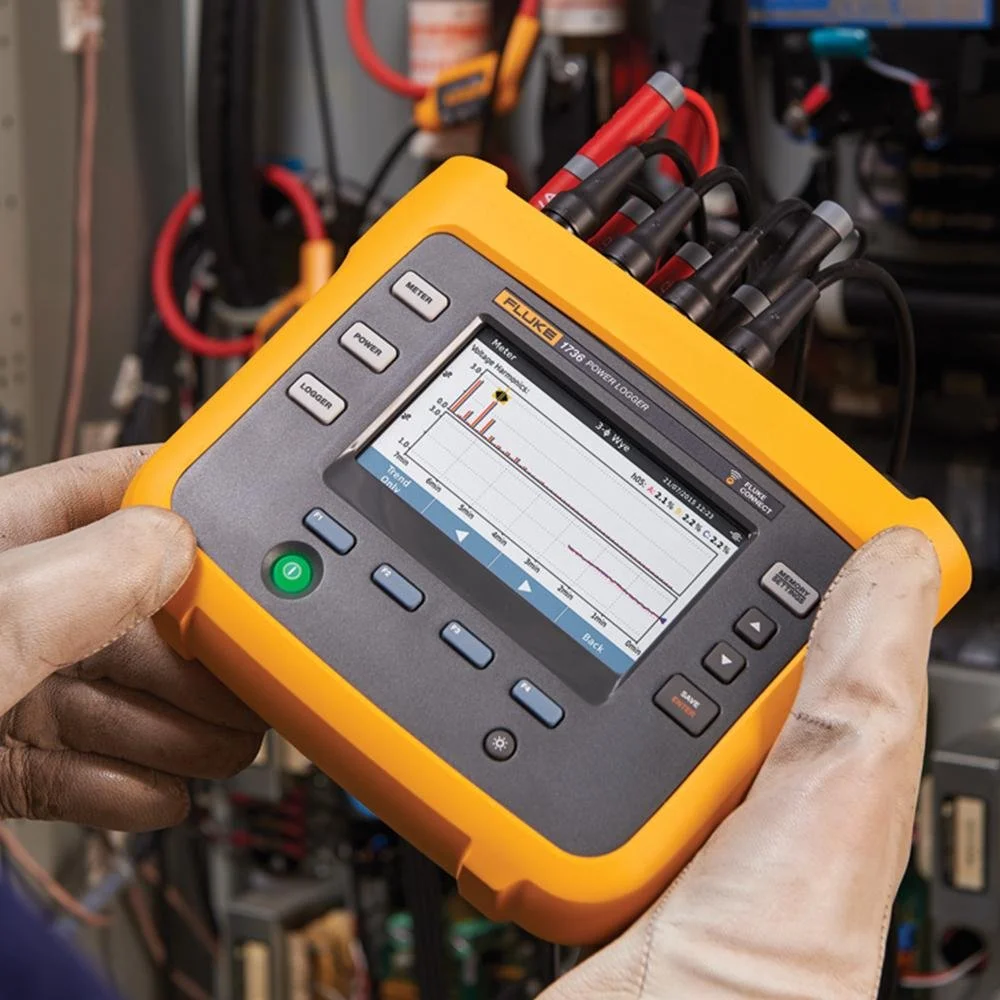

When a power logger is installed, it continuously records your site’s electrical performance over several days or weeks. Once the data is collected, a licensed electrician analyses it to identify any abnormalities—such as unbalanced phases, equipment faults, excessive load spikes, or poor power factor correction. The final report provides clear, visual information on what’s happening behind the switchboard, often revealing issues that can’t be seen during a standard inspection.
Fill out your details below.
Who has benefit from Power Logging Services?
Our power logging and monitoring services have helped clients across Perth understand their site’s energy capacity, prevent outages, and make smarter upgrade decisions. Here are some real examples of how our studies have delivered practical results and savings.
1. Cottesloe – 45-Unit Strata Complex
A large Cottesloe strata complex engaged our team to assess whether their existing electrical infrastructure could support air-conditioning installations for all 45 units. We completed two power monitoring studies—a seven-day test in winter and another in summer—to measure seasonal load variations.
The data revealed that the complex’s maximum demand peaked at only 40% of total capacity, leaving significant headroom for new installations. Our power logging report confirmed that 100% of units could safely add air-conditioning without overloading supply. We also provided a detailed list of viable cooling options and future energy considerations to maintain healthy operating levels across the site.
2. Mundaring – Shopping Complex & Local Businesses
In Mundaring, a shopping complex approached us to determine whether their existing distribution point could accommodate multiple electric vehicle (EV) chargers. We carried out a targeted power monitoring study to map current load profiles and usage patterns.
The results showed that the system could support the additional demand without major infrastructure upgrades. By identifying this early, the client saved tens of thousands of dollars in unnecessary cabling, labour, and downtime. The power logging Perth study allowed for a smooth EV rollout with minimal disruption to daily operations.

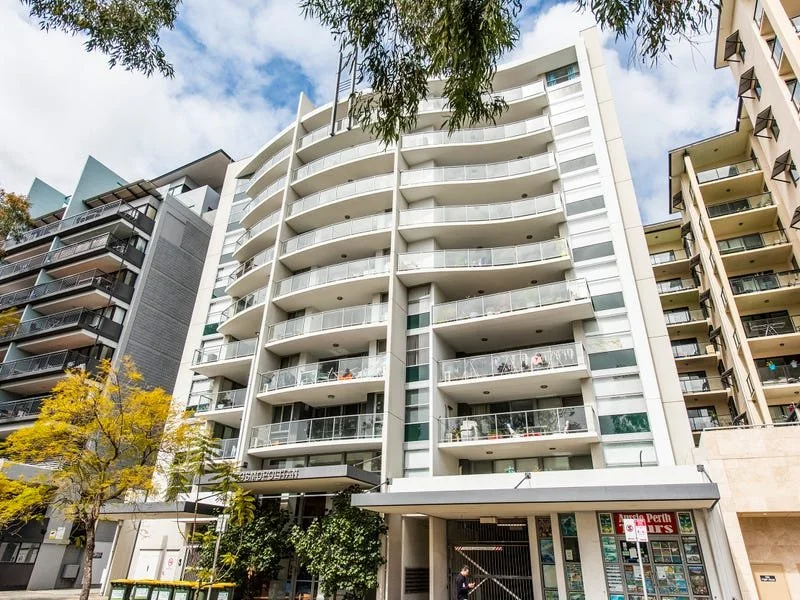

3. Perth CBD – Strata Complex with Regular Power Disruptions
A strata complex in the Perth CBD was experiencing ongoing and unexplained power interruptions affecting multiple units. We deployed our power monitoring equipment for a 21-day period to capture comprehensive electrical performance data across the site.
Following our detailed reporting, an electrical engineer reviewed the results and identified intricate harmonic distortion issues that were previously undetectable. This analysis enabled the engineer to design a cost-effective, permanent solution that restored stable power to the building. Without the power logging data, the underlying issue would have remained hidden and unresolved.
4. Bayswater – Survey Strata Complex with EV Charger Enquiries
At a six-unit survey strata complex in Bayswater, one resident requested a study to explore the potential for installing EV chargers across all properties. Our power monitoring assessment confirmed that the site did not have sufficient capacity for six 22 kW chargers running simultaneously.
However, through our report and consultation, we recommended a load management system that would safely distribute demand across all chargers. This approach allowed the installations to proceed while ensuring total load never exceeded the network’s safe operating limits—providing a practical, future-ready solution for the residents.
✓ Reactive Maintenance & Breakdowns
✓ Renovations & Fit Outs
✓ RCD’s, Smoke Alarms & Compliance
✓ RCD Testing & Emergency Lighting
✓ Thermographic Imaging & Reporting
✓ Western Power Repair Works
Electrical Services
✓ Electric Vehicle Charging
✓ Underground Electrical Supplies
✓ Planned Maintenance & Service Agreements
✓ National Contract Management
✓ Lighting Upgrades
Why Choose Jarrah Group for Your Electrical Services?
✓ Client-focused Approach
✓ Professional & Respectful Tradespeople
✓ Founded by Award Winning Service Business Operators
✓ Fully Licensed and Insured
✓ Astute Problem Solvers
At Jarrah Group, we’re redefining electrical services in Perth with a client-first approach that puts your time, property, and expectations at the centre of everything we do. Whether you need a reliable Perth electrician you can trust for ongoing maintenance services or for the project you are planning, our fully licensed and insured team delivers quality workmanship with clear communication and zero hassle. We proudly support homeowners, business owners, property managers, and strata teams across Perth — offering fast turnarounds, respectful tradespeople, and results that last.
Fill out your details below.
Electrical FAQs
Perth Electrician | Reliable & Trusted by Perth Property Owners.
-
Absolutely — our team of qualified Perth electricians are skilled in both residential and commercial electrical services, meaning we can support your home, investment property, or business with equal professionalism.
Residential:
For homeowners, we offer everything from power point installations and lighting upgrades to complete switchboard rewiring and smoke alarm compliance. Our residential electricians in Perth take the time to understand your space, your needs, and your goals — offering helpful advice and clean, efficient workmanship.
We often work with property owners during renovations, kitchen upgrades, home extensions, and even small everyday jobs like fixing a broken light switch or replacing a ceiling fan. No matter the job size, you get the same level of service.
Commercial:
If you run or manage a business, you know the importance of safety, compliance, and minimal disruption. Our commercial electricians in Perth work with offices, retail spaces, cafes, gyms, warehouses and more. We deliver:
After-hours electrical work
Emergency lighting installations and testing
Test and tag compliance
Power and data point installations
Energy-efficient lighting retrofits
Ongoing maintenance and scheduled inspections
We also support property managers, real estate agents, and strata bodies with reliable service, fast reporting, and fixed-rate packages for repeat work.
So whether it’s your home, your investment, or your commercial space — Jarrah Group has the right team of Perth electricians to get the job done right the first time.
-
Yes — every Perth electrician on our team is fully licensed, insured, and up to date with the latest industry standards, safety protocols, and WA regulations. We don’t cut corners. In fact, compliance and safety are at the core of everything we do.
When you hire Jarrah Group, you're engaging an electrician in Perth who takes their duty of care seriously — not only to your property, but to your safety, your family, your tenants, or your team. We stay current with all updates to the WA Electrical Licensing Board and maintain appropriate insurances for all residential and commercial work.
In addition to holding full licenses, our team regularly undertakes internal training to ensure consistency in workmanship, communication, and site safety. We also issue a Certificate of Electrical Compliance (CEC) on completion of every applicable job — this gives you peace of mind that all work complies with Western Australian electrical legislation.
When searching for a reliable, qualified and insured Perth electrician, make sure you're choosing a team that does things by the book. At Jarrah Group, we’re proud to represent professionalism in every aspect of our work.
-
We understand that electrical issues don’t wait — they disrupt your routine, affect your comfort, and sometimes put your property at risk. That’s why Jarrah Group provides fast, responsive Perth electrical services for both emergency and same-day jobs, depending on availability.
Whether you’ve lost power, have tripping circuits, or your smoke alarms won’t stop beeping, our team can often dispatch a Perth electrician to your property on the same day. For urgent situations affecting safety (like exposed wires, burning smells, or sparks), we prioritise attendance and provide guidance on what to do before we arrive.
As a local Perth electrician, we operate across the metro area and know how to navigate traffic, routes and scheduling efficiently. We don’t overpromise — instead, we offer honest ETAs, fast booking options, and real-time updates from our team so you’re never left guessing.
For ongoing clients such as property managers, strata groups, or commercial businesses, we offer service agreements and priority scheduling so you can access fast trade support when you need it most.
Bottom line: if you’re looking for an electrician in Perth who responds quickly and communicates clearly — Jarrah Group is it.
-
Step-by-step guide to troubleshoot a tripping RCD:
Turn off all appliances connected to the affected circuit. This includes obvious items like kettles and toasters, but don’t forget:
Dishwashers
Fridges and freezers
Washing machines
Outdoor power tools or lighting
Pool pumps or spa systems
Extension leads and plugged-in chargers
Switch the RCD back on.
If it stays on: the issue likely lies with one of your appliances.
If it trips again immediately: the fault may be in your wiring or fixed appliance.
Plug appliances back in one by one, turning them on as you go.
When the RCD trips again, you’ve likely found the faulty item.
Unplug outdoor items too.
Many RCD trips are caused by moisture or wear in outdoor power points, garden lights, or water-feature circuits — especially after rain or high humidity.Still tripping?
Take a clear photo of your switchboard, showing the position of the tripped RCD and surrounding switches.
Contact Jarrah Group, your trusted electrician in Perth, and send us the image. It helps us diagnose the issue faster and arrive prepared to fix it.
Electrical safety is serious. If you're unsure or uncomfortable working near your switchboard, don’t risk it. Call Jarrah Group — our fully licensed Perth electricians can inspect, test, and resolve RCD faults with precision and professionalism.
-
Yes — smoke alarms do expire, and in Western Australia, it’s a legal requirement that they’re replaced every 10 years from the date of manufacture, even if they appear to be working.
Over time, the internal components in a smoke alarm degrade, reducing their ability to detect smoke and respond correctly in an emergency. If you're unsure about the age of your smoke alarms, remove them and check the manufacture date printed on the back.
For properties being sold, rented, or leased in WA, it's mandatory to have hard-wired, photoelectric smoke alarms installed and in working order — in accordance with local building codes and regulations.
At Jarrah Group, our licensed Perth electricians can:
Check if your existing smoke alarms are compliant
Install hard-wired, interconnected smoke detectors
Replace expired or battery-powered alarms
Conduct full compliance testing and certification
Don’t leave it to chance — working smoke alarms save lives. If it’s been a while since yours were checked or installed, get in touch with Jarrah Group today for a fast, professional assessment.
-
Thermographic imaging is a diagnostic tool that uses infrared technology to detect excess heat in your electrical system — before it becomes a serious fault or fire hazard. At Jarrah Group, our licensed Perth electricians use thermal imaging cameras to scan your switchboard, power connections, and other critical components without shutting down your power.
Hot spots may indicate:
Loose or overloaded circuits
Faulty breakers or RCDs
Imbalanced three-phase power
Corrosion or wear in wiring
Poorly terminated connections
This non-invasive testing method is especially useful for commercial properties, strata sites, and older homes. It allows us to prevent problems before they cause real damage — saving you downtime, risk, and cost.
If you manage a facility or own an investment property, we recommend annual thermographic inspections as part of your electrical maintenance plan. It’s fast, clean, and adds a layer of safety that goes beyond the standard visual inspection.
